Candy Packing Machine: Complete Guide for Modern Candy Packaging Lines
The candy business has changed a lot over the last few years. It’s no longer just about producing more candy. Manufacturers today are dealing with shorter delivery times, more packaging styles, labor shortages, and growing pressure from retailers for better shelf presentation.
At the same time, candy products themselves are becoming more challenging to pack. Gummy candy sticks together. Ring candy has irregular shapes. Chocolate reacts to heat. Mixed candy products need accurate weighing to avoid product giveaway.
That’s why more candy manufacturers are moving toward fully automatic candy packing machines and integrated packaging lines.
Instead of relying on semi-automatic systems or manual labor, modern candy factories are investing in complete packaging automation solutions that can handle feeding, weighing, filling, sealing, inspection, and end-of-line automation in one continuous process.
In this guide, we’ll look at the most common types of candy packing machines, packaging formats, and how manufacturers choose between multihead weigher VFFS packing lines and premade pouch packing systems.

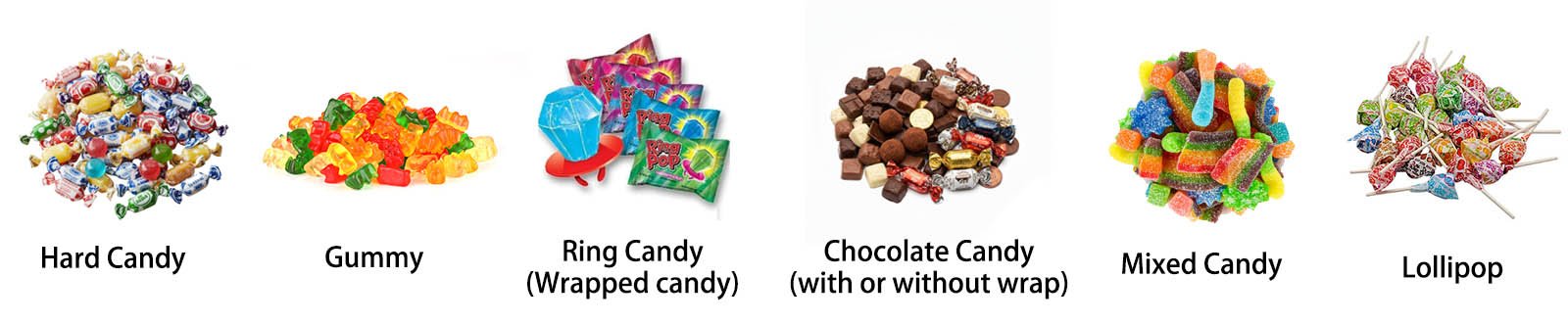

Different Types of Candy Require Different Packaging Solutions
One mistake many factories make is assuming all candy products can run on the same packaging setup. In reality, different candy products behave very differently during weighing and packaging.
| Candy Type | Packaging Challenges | Recommended Packaging Solution |
|---|---|---|
| Hard Candy | Good flowability and high-speed production demand | Multihead weigher with VFFS packing machine |
| Gummy Candy | Sticky surface in warm or humid environments | Dimple plate multihead weigher with anti-stick design |
| Ring Candy | Irregular shapes and uneven feeding | Gentle feeding system with accurate multihead weighing |
| Chocolate Candy | Temperature-sensitive and easy surface damage | Gentle conveying and stable sealing system |
| Mixed Candy | Different shapes and weights in one package | High-accuracy mixture multihead weigher packaging line |
| Lollipop | Special product shape and stick handling difficulty | Customized feeding and packing solution |
Common Candy Packaging Formats
The packaging format often determines which type of candy packing machine is the better fit.
Pillow Bags
Pillow bags are still the most common candy packaging format because they are simple, cost-effective, and suitable for high-speed production.
They are commonly used for small retail candy packs, economy packaging, and bulk production. The typical machine for this format is a VFFS packing machine.
Gusset Bags
Gusset bags allow larger package volumes and improved shelf standing ability.
They are often used for family-size candy packs, wholesale packaging, and bulk supermarket products.
Stand-Up Pouches
Stand-up pouches are becoming more popular in premium candy markets because they improve shelf appearance and branding visibility.
They are a strong fit for premium gummy candy, imported candy products, and retail-focused packaging. The typical machine for this format is a premade pouch packing machine.
Zipper Pouches
Consumers increasingly prefer resealable candy packaging.
Zipper pouches help improve convenience, extend freshness, and increase perceived product value. These bags are commonly used for gummy candy, chocolate snacks, and mixed candy products.
What Machines Are Used in Candy Packaging Lines?
Modern candy packaging systems are usually made up of several connected machines working together automatically.
Feeding System
The feeding system transfers candy from upstream production into the weighing machine.
Common options include Z-type bucket conveyors, inclined conveyors, and vibratory feeders. The right feeding system helps maintain stable product flow and reduces product damage.
Multihead Weigher
The multihead weigher is the core of most modern candy packing lines.
Compared with manual weighing or volumetric cup systems, multihead weighers provide higher accuracy, faster speed, lower product giveaway, and better consistency.
This is especially important for mixed candy packaging where weight control directly affects profitability.
Packing Machine
VFFS Packing Machine
A vertical form fill seal machine automatically forms bags from roll film, fills products, and seals the package.
This solution is ideal for high-speed production, lower packaging cost, and flexible bag sizes.
Typical bag types include pillow bags, gusset bags, and quad seal bags.
Premade Pouch Packing Machine
Premade pouch machines use preformed bags instead of roll film.
These systems are commonly selected for premium retail packaging, stand-up pouch packaging, and zipper pouch applications.
The final package appearance is usually more premium compared with standard VFFS bags.

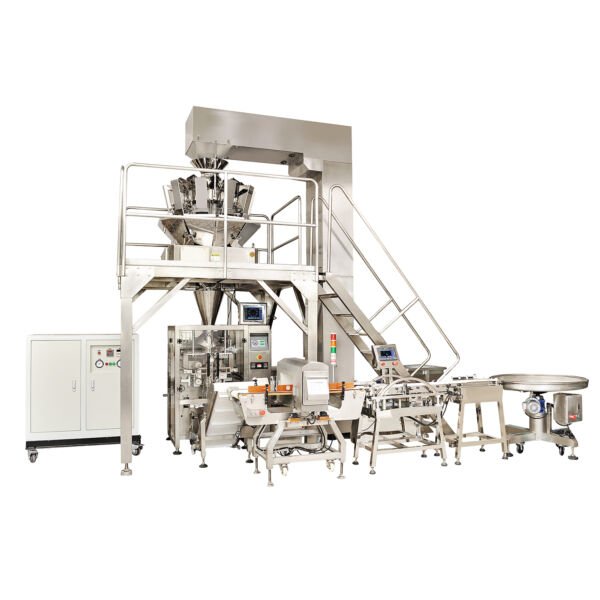

Solution 1: Multihead Weigher VFFS Candy Packing Line
For candy manufacturers focused on production efficiency and lower packaging cost, the multihead weigher VFFS packing line remains the most common solution.
Typical Line Configuration
A complete line usually includes:
- Z conveyor
- Multihead weigher
- VFFS machine
- Support platform
- Metal detector
- Checkweigher
Optional upgrades include date coding, cartoning systems with Delta robot, and robotic palletizing.
Advantages of VFFS Candy Packing Lines
Higher Production Speed
VFFS systems are ideal for large-volume candy production.
Typical speeds are around 30–80 bags per minute, with higher speeds available for twin VFFS systems.
Lower Packaging Material Cost
Since the bags are formed directly from roll film, packaging cost is generally lower than premade pouch packaging.
For factories producing millions of bags annually, this difference becomes significant.
Flexible Bag Sizes
Manufacturers can switch between different bag lengths and formats relatively quickly.
This is useful for seasonal packaging, promotional candy packs, and multiple SKU production.
Typical Technical Specifications
| Item | Specification |
|---|---|
| Packing Speed | 30–80 bags/min |
| Bag Type | Pillow / Gusset / Quad Seal |
| Weighing Accuracy | ±0.1–1.5 g |
| Film Width | 320-1050 mm (depends on model) |
| Bag Length | 160–400 mm |
| Machine Material | SUS304 Stainless Steel |
| Control System | PLC + Touch Screen |

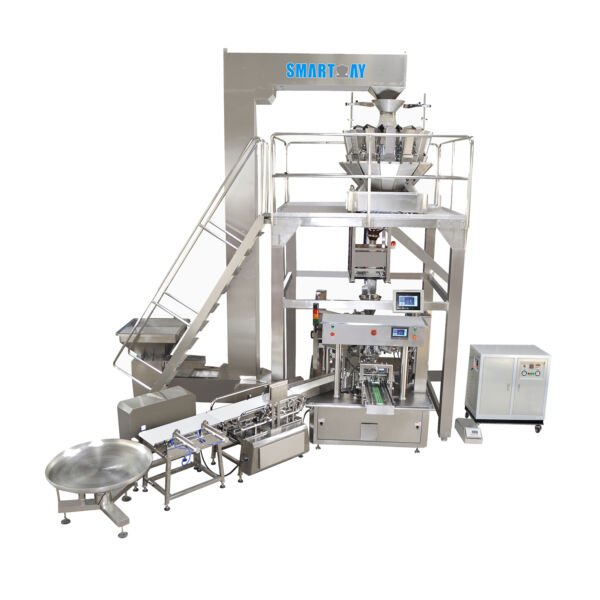

Solution 2: Multihead Weigher Premade Pouch Packing Line
For candy brands focused on shelf appearance and premium retail positioning, premade pouch packaging is becoming increasingly popular.
Typical Line Configuration
A standard system usually includes:
- Bucket elevator
- Multihead weigher
- Rotary premade pouch packing machine
- Platform
- Metal detector
- Checkweigher
Optional systems include zipper opening devices, and cartoning automation.
Advantages of Premade Pouch Candy Packing Machines
Premium Package Appearance
Stand-up pouches create stronger visual impact on retail shelves.
This is especially important for premium candy brands, export products, and supermarket retail packaging.
Better Branding Opportunities
Larger pouch surfaces allow better graphics, stronger branding, and clearer product visibility.
This helps candy brands stand out in competitive retail markets.
Supports Zipper Packaging
Resealable pouches continue to grow in popularity because consumers prefer packaging they can reopen and store easily.
Typical Technical Specifications
| Item | Specification |
|---|---|
| Packing Speed | 20–55 pouches/min |
| Pouch Type | Stand-up / Zipper / Flat pouch |
| Pouch Width | 100–240 mm |
| Weighing Accuracy | ±0.1–1.5 g |
| Air Consumption | 0.8 m³/min |
| Machine Material | SUS304 Stainless Steel |
VFFS vs Premade Pouch Candy Packing Machine
Both systems are widely used in the candy industry, but they serve different production goals.
| Item | VFFS Line | Premade Pouch Line |
|---|---|---|
| Packaging Cost | Lower | Higher |
| Production Speed | Faster | Medium |
| Bag Appearance | Standard | Premium |
| Flexible Packaging Styles | Medium | High |
| Best For | Large-scale production | Premium retail products |
In many factories, both systems are used together depending on product positioning.
Additional Automation Systems for Candy Factories
More manufacturers are now building complete automatic candy packaging lines rather than purchasing standalone machines.
Checkweigher and Metal Detector
Food safety requirements continue to increase globally.
Inline inspection systems help improve product safety, reduce customer complaints, and meet export standards.
Automatic Cartoning System
Candy bags or pouches can automatically enter cartons after primary packaging.
Common applications include bag into carton, stand-up pouch into carton, and retail display box packing.
Robotic Case Packing and Palletizing
End-of-line automation helps reduce labor dependency and improve packaging consistency.
This is especially valuable for high-volume candy factories, multiple shift production, and export manufacturers.
How to Choose the Right Candy Packing Machine
There’s no single candy packing machine that fits every product.
Most manufacturers evaluate several factors before selecting a system.
Candy Characteristics
The machine should match the product’s shape, stickiness, fragility, and flowability.
Production Capacity
Factories targeting high output usually prefer multihead weigher VFFS systems or twin VFFS packaging lines.
Premium brands with smaller production volumes may choose premade pouch packaging instead.
Packaging Style
The bag style often determines machine type immediately.
For example, pillow bags usually require a VFFS machine, while zipper pouches usually require a premade pouch packing machine.
Future Expansion
Many factories today plan for future automation upgrades from the beginning.
This may include cartoning, case packing, palletizing, and remote monitoring systems.
Choosing a supplier that can support full-line integration becomes very important down the road.
Final Thoughts
Candy packaging today is no longer just about putting products into bags.
Manufacturers are under pressure to improve efficiency, reduce labor dependency, maintain accurate weighing, and create packaging that stands out on retail shelves.
That’s why fully automatic candy packing lines are becoming the standard across modern candy factories.
For large-scale production, multihead weigher VFFS packing lines remain the most efficient and cost-effective solution.
For premium retail packaging, premade pouch packing machines provide stronger shelf presentation and better branding opportunities.
The key is choosing a packaging system that matches your candy product, packaging goals, and long-term production plans.
